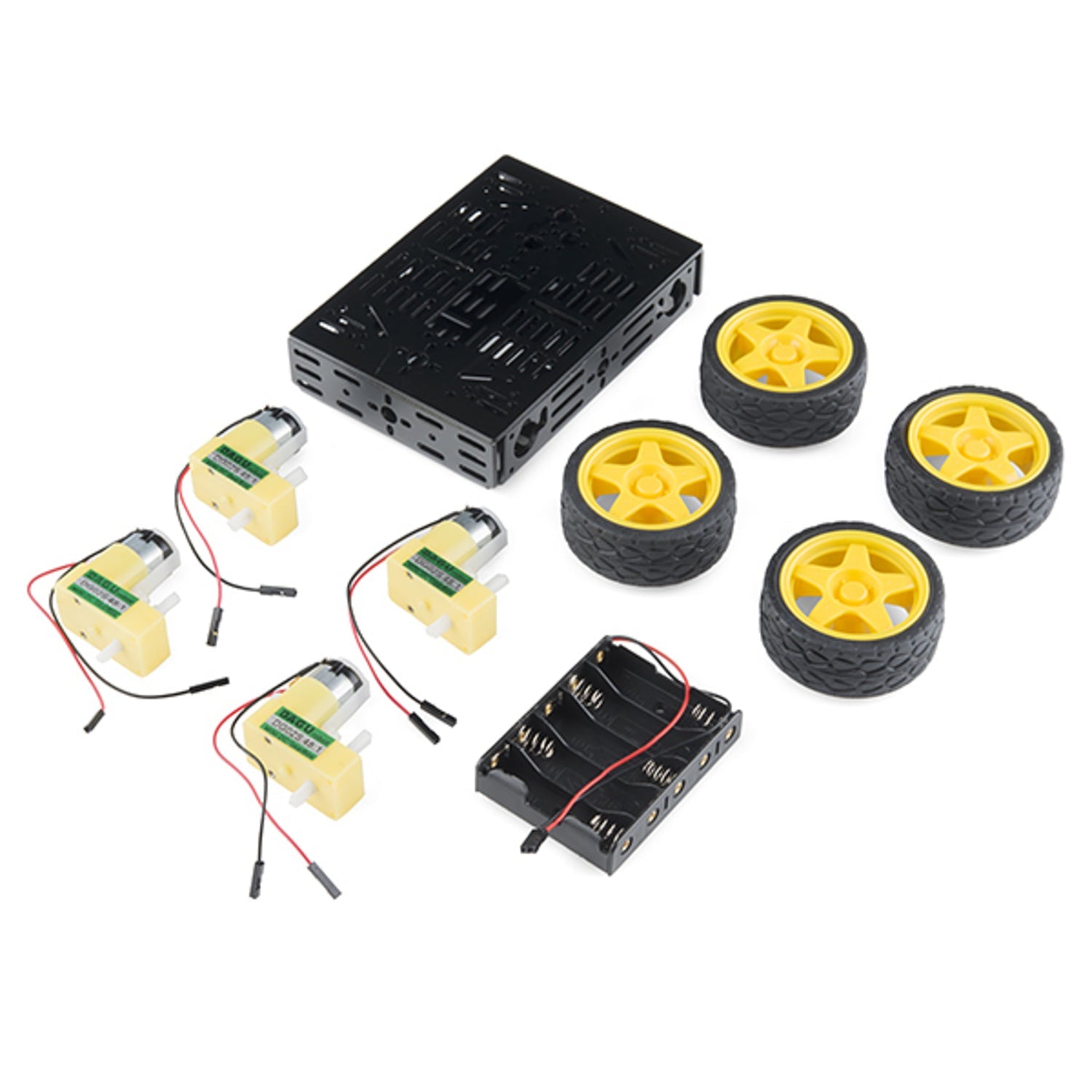

The Basic Multi - Chassis 4WD Kit is an incredibly user - friendly robot chassis platform that's a breeze to assemble and use. It offers you a speedy four - wheel drive base for your robot, with ample space for expansion. You can easily attach various sensors and controllers to customize your robot's functionality. All you need to provide is a basic motor driver and power source, and you're all set to start driving! This kit comes with four 48:1 DC gearboxes, each independently powering a 65mm low - profile wheel. The 2.5mm thick aluminum frame has numerous pre - cut attachment points on each side, enabling you to add a wide range of robot controllers, drivers, and sensors. A building instruction booklet, listing all the included items, is inside the kit and also available in the documents section below. It arrives as a complete kit, including all the necessary hardware and tools for assembly. Dimensions: The completed kit measures 165L x 157W x 65H mm, and the wheel diameter is 65 mm. Kit Includes: 1 aluminum frame, 4 65 mm diameter 48:1 DC gearboxes, 4 low - profile wheels, 4 M3 25mm standoffs, 6 M3 8mm screws, 4 M2.5 25mm screws, 4 2.5 20mm screws, 8 M3 8mm screws, 8 M2.5 nuts, 2 M3 nuts, 1 5 AA battery holder, 1 spanner, and 1 screw driver. Documents: Datasheet (DG02S Gearbox), Instruction Booklet, and Product Video.
Using the Basic Multi - Chassis 4WD Kit is simple. First, gather all the parts from the kit and the basic motor driver and power source you need to supply. Refer to the instruction booklet to start assembling the chassis. Attach the 48:1 DC gearboxes to the 65mm low - profile wheels and then connect them to the aluminum frame using the provided screws and standoffs. Once the chassis is assembled, add your desired sensors and controllers to the pre - cut attachment points on the frame. Make sure to connect the power source and motor driver correctly before you start driving. As for maintenance, keep the kit clean and free from dust and debris. Regularly check the screws and nuts to ensure they are tightened. If you notice any parts wearing out, replace them with the appropriate ones from the kit. Store the kit in a dry place when not in use to prevent damage.
