Product Details

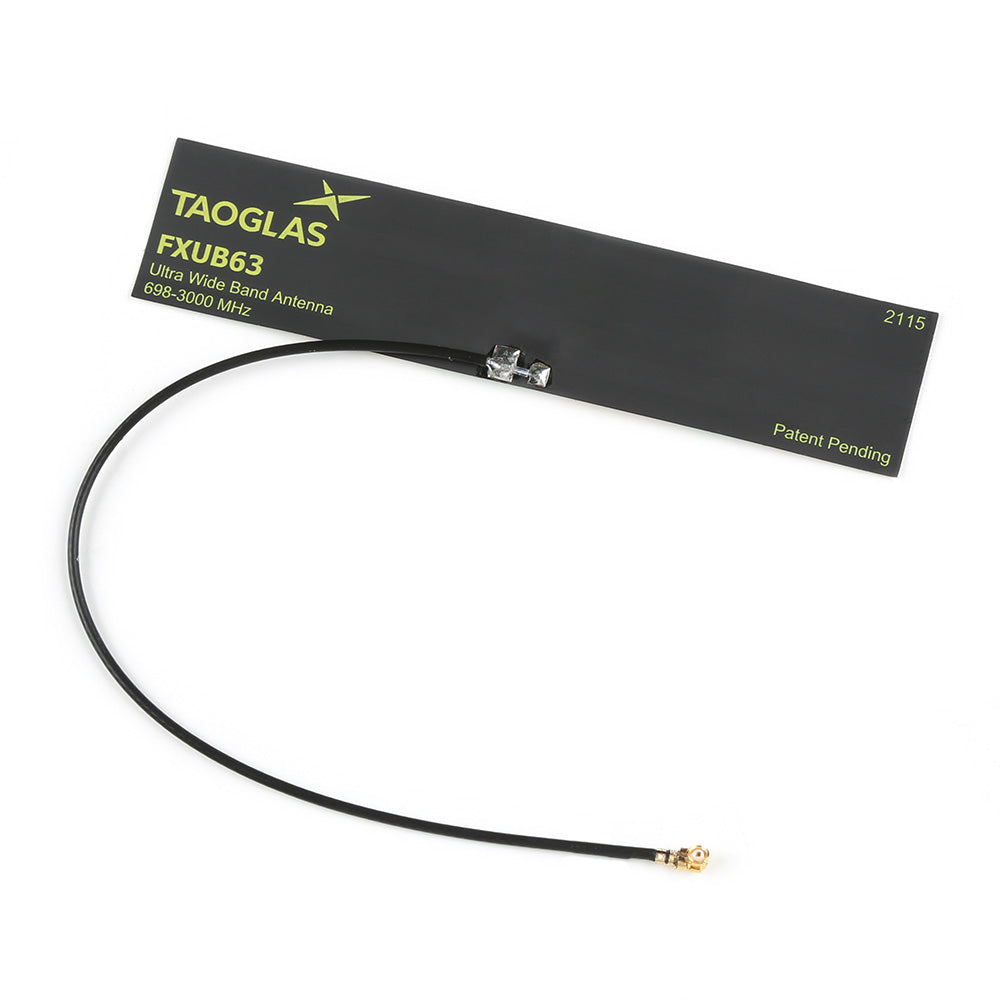

This is an incredibly efficient, wide - band, and flexible LTE antenna that takes up very little space. It's a breeze to install, and its durable, flexible polymer design ensures long - lasting performance. With over 45% efficiency on LTE bands from 698 – 3000MHz, it's perfect for a wide range of applications requiring LTE connectivity, such as home automation, emergency services, automotive, healthcare, HD video, vending machines, digital signage, IoT gateways, smart grid, and agriculture. Measuring 96mm x 21mm x 0.2mm with an adhesive backing, it comes with a 150mm, ø1.37 coaxial cable and a U.FL compatible connector for easy setup. Key features include a cellular antenna type, Flex PCB mechanical style, a gain of 5, impedance of 50, an operating temperature range from - 40°C to 85°C, adhesive mounting style, connector termination style, IPEX MHFI / U.FL antenna connector type, 1.37 Coax cable type, straight connector body style, linear polarity, a frequency range from 698MHz to 2690MHz, normal connector polarity, 150mm cable length, a VSWR of 3:1, and it weighs just 2g. A datasheet is also available.
Using this LTE antenna is super easy. First, find a suitable spot for installation. Since it has an adhesive backing, you can stick it firmly to a flat surface. Then, connect the 150mm coaxial cable to your device using the U.FL compatible connector. You're all set to enjoy high - quality LTE connectivity. When it comes to maintenance, keep it away from sharp objects to avoid damaging the flexible polymer. Also, try to keep it in an environment within the operating temperature range of - 40°C to 85°C. If you need more detailed information, refer to the provided datasheet.
