What's an Ambient Light Sensor?
An ambient light sensor measures the light in the surroundings. It's used in many applications like lighting control and greenhouse light assessment to help plants grow well.

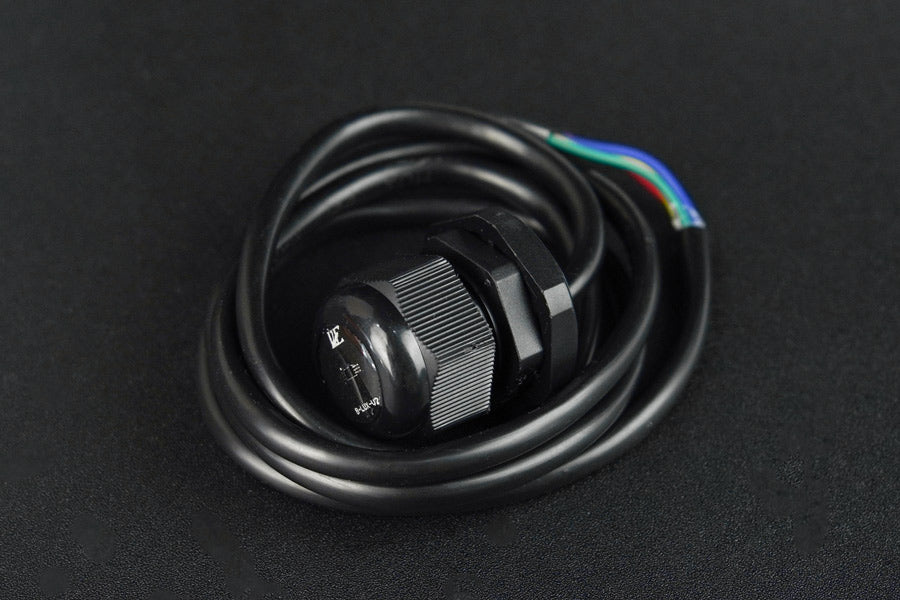

Introduction to the Waterproof Digital Ambient Light Sensor
This waterproof sensor accurately measures light intensity from 1 to 65535 lx. It has a 50Hz/60Hz light noise rejection function for stable performance. With a user - friendly Gravity interface and I2C communication, it's easy to use with microcontrollers like Arduino UNO. The IP68 waterproof rating allows it to be fully submerged in water, making it ideal for outdoor projects in tough environments such as greenhouses, smart car lights, and weather stations.
Features- Low power consumption
- IP68 waterproof rating
- I2C Communication
Applications- Greenhouses
- Smart car lights
- Weather stations
Specification- Supply Voltage: 5V
- Operating Current: 1µA
- Detection Range: 1 - 65535lx
- Accuracy: 1.2lx
- Communication Mode: I2C
- Operating Temperature: -40 to 85°C/-40 to 185°F
- Waterproof Rating: IP68
- Thread Length: 10mm
- Cutout Size: 26mm
- Wrench Size: 31mm
- Cable Diameter: 3mm
- Wire Length: 1m
DocumentsShipping List- Gravity I2C Waterproof Ambient Light Sensor (1 - 65535lx) × 1
Using the Gravity I2C IP68 Waterproof Ambient Light Sensor is a breeze. First, connect it to your microcontroller, like the Arduino UNO, through the I2C communication. The Gravity interface makes this connection easy and hassle - free. Once connected, power it up with a 5V supply. The sensor will start measuring the light intensity in the range of 1 - 65535 lx. For outdoor projects, you don't have to worry about water damage because of its IP68 waterproof rating. Just place it in the desired location, whether it's in a greenhouse, on a smart car, or at a weather station. When it comes to maintenance, keep it clean from dirt and debris. Avoid exposing it to extreme temperatures outside the - 40 to 85°C (-40 to 185°F) range, as this could affect its performance. If you notice any issues, refer to the product wiki for more detailed troubleshooting steps.
