The Elecrow 10.1-inch IPS LCD Monitor is a great choice for both Raspberry Pi and Windows PC users. It features a sleek metal shell and built-in loudspeaker. Connect it easily to your Raspberry Pi board at the back of the screen. With a two-in-one power design, it can power your Raspberry Pi, reducing clutter and keeping your desktop tidy.
This monitor boasts a high resolution of 1280x800 pixels. You can control it via touch or remote control. Use the keys on the back or the remote to adjust contrast and color. It supports multiple video input interfaces like HDMI, VGA, AV, and VNC, and also supports audio.
It's widely used in various fields such as industrial automation, intelligent computers, security, video microscopy, industrial equipment displays, and car reversing.
For Raspberry Pi users: First, open the terminal and download the driver on RPI by running 'git clone https://github.com/Elecrow-keen/Elecrow-LCD101.git'. Then, install the driver by running 'CD Elecrow-LCD101', 'sudo chmod +x Elecrow-LCD101', and 'sudo ./Elecrow-LCD101'.
For Windows OS users, the driver link is on GitHub.
Features:
- Supports multiple video input interfaces: HDMI, VGA, AV, and VNC.
- High resolution of 1280x800 pixels.
- Key operation and remote control supported.
- Suitable for Windows PCs and Raspberry Pi.
- IPS screen with wide visual angle, fast response, and accurate color.
- Reserved fixing holes for control boards, suitable for Raspberry Pi 3 model B, 2 model B, and has an audio speaker.
- High sensitivity and strong anti-jamming.
Specifications:
- Color: Black.
- Screen size: 24.3 (L) x 16.3 (W) x 4 (H) cm.
- Package size: 31 (L) x 25 (W) x 7 (H) cm.
- Item Weight: 1600g.
- Resolution: 1280 x 800.
- Wide viewing angle: 85/85/85/85.
- Shell: metal.
- Input voltage: 12v.
- Contrast ratio: 500:1
- Light intensity: 300

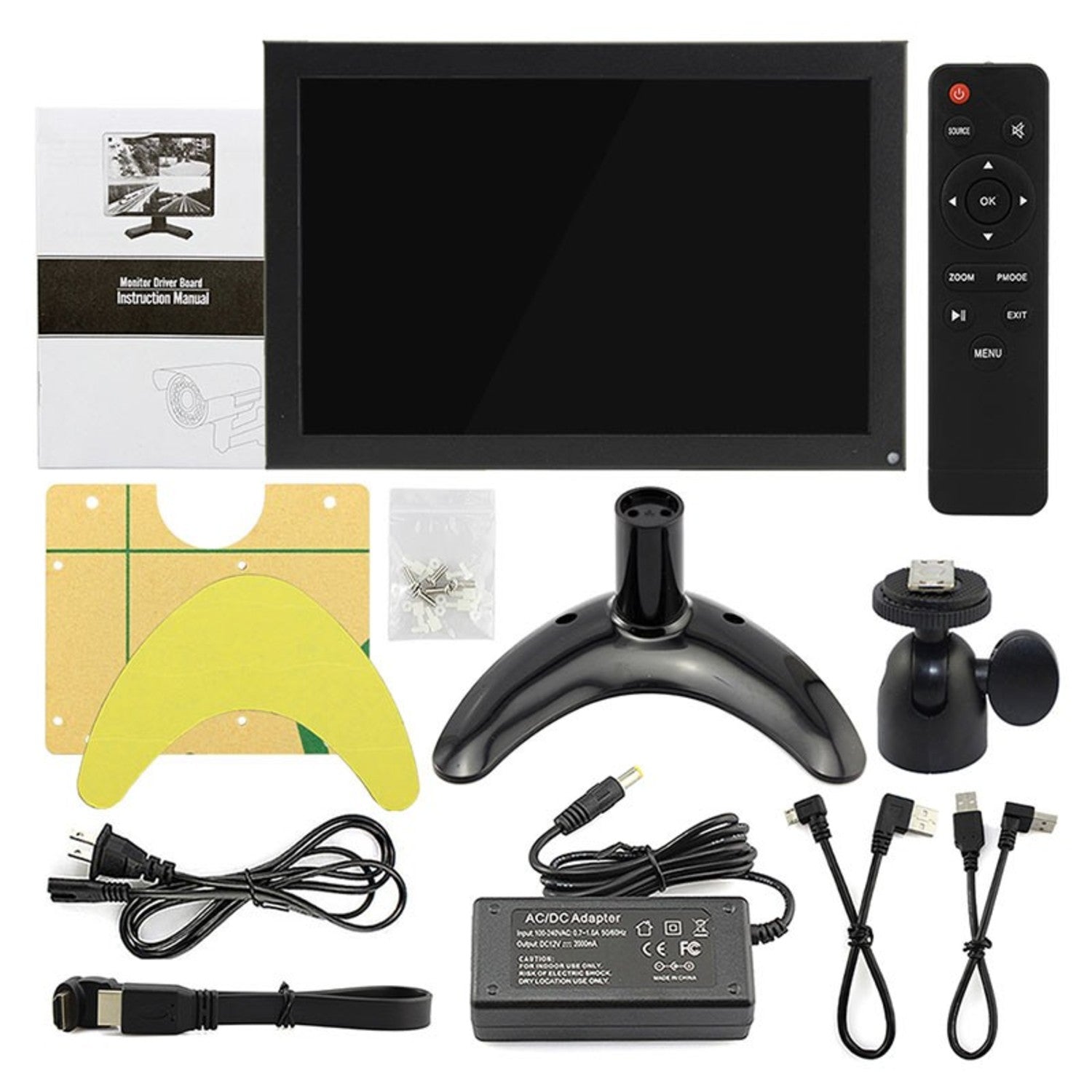

Package list:
- 10.1-Inch HDMI IPS LCD Monitor x1
- 12V/2A power adapter x1
- Remote control x1
- HDMI cable x1
- USB A to USB A cable x1
- USB A to Micro USB cable x1
- Acylic Board x1
- Plastic Screws x4
- Plastic Standoff x4
- Plastic Nuts x4
- Screws (M4*10mm) x4
Wiki & External links:
- User manual
- Calibration Document
Using the Elecrow 10.1-inch IPS LCD Monitor is easy. First, connect it to your device. For Raspberry Pi, connect it at the back of the screen. For Windows PC, use the appropriate video input interface like HDMI. The monitor comes with a power adapter, so plug it in and power on.
You can control the monitor in two ways. You can use the keys on the back of the monitor or the provided remote control to adjust settings like contrast and color.
When it comes to installation for Raspberry Pi, open the terminal and follow the steps in the description to download and install the driver. For Windows OS, get the driver from the provided GitHub link.
Here are some notes. Make sure the input voltage is 12v to avoid damaging the monitor. Keep it away from strong magnetic fields as it may affect the display quality.
For maintenance, clean the screen gently with a soft, dry cloth. Don't use harsh chemicals as they may scratch the screen. Store it in a dry and cool place when not in use.
