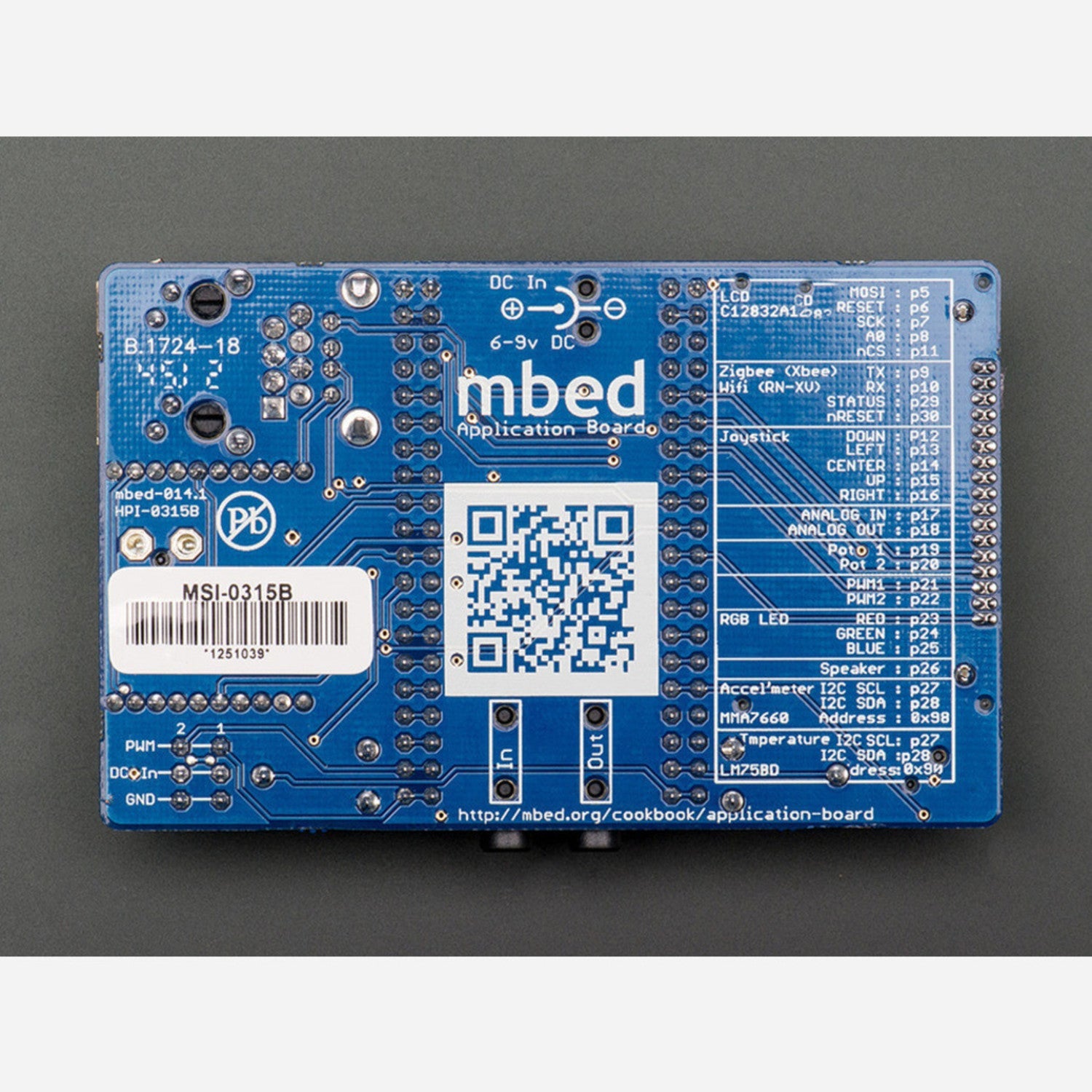

Supercharge your mbed LPC1769 development board with this amazing, fully - assembled application board. It's compact yet packed with features. Just plug in your mbed, and you're all set to start your projects! Key features include a 128x32 Graphics LCD, a 5 - way joystick, 2 potentiometers, 3.5mm audio jacks for both analog in and out, a connected speaker via PWM, a 3 - Axis +/1 1.5g accelerometer, 2 servo motor headers, an RGB LED connected to PWM, a USB - mini - B connector, a temperature sensor, a socket for Xbee (Zigbee) or RN - XV (Wifi), an RJ45 Ethernet connector, a USB - A connector, and a 1.3mm DC Jack input. Note: the mbed board is not included, but you can find them in our shop. For more details and project ideas, visit the mbed.org cookbook page.
Using this mbed application board is a breeze. First, make sure your mbed LPC1769 dev board is ready. Then, simply plug it into the application board. You can start exploring the features right away. For example, use the 5 - way joystick to navigate the 128x32 Graphics LCD. You can also connect external devices like speakers or microphones through the audio jacks. When it comes to power, you can use the 1.3mm DC Jack input or the USB connectors. Remember, the mbed board itself is not included, so you'll need to get one separately. As for maintenance, keep the board clean and free from dust. Avoid exposing it to extreme temperatures. If you want to connect Xbee or RN - XV modules, make sure they are properly inserted into the socket. Check the mbed.org cookbook page for more detailed code and project inspiration.
