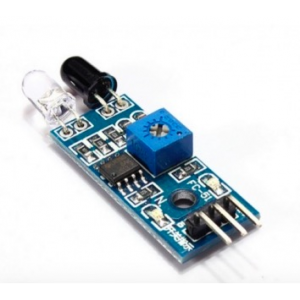

IR Infrared Obstacle Avoidance Sensor Module

This amazing IR sensor is designed to detect obstacles right in front of it. As soon as an object is detected, the green indicator light on the board will brightly light up. There's a low - level output signal available at the OUT port. It can detect objects within a range of 2 - 30 cm, with a detection angle of up to 35 degrees. You can easily adjust the detection distance using the potentiometer. Just rotate the dial clockwise to increase it. Simply connect the OUT pin on the sensor module directly to your IO port. Connection details are as follows: VCC to VCC, GND to GND, and OUT to IO. It operates on a power supply of 3 - 5V and has a compact size of 3.1CM * 1.5CM. The package includes 1 x Infrared obstacle avoidance module.

Using this infrared obstacle avoidance sensor module is quite easy. First, connect the VCC to the power supply's VCC, GND to the ground, and the OUT pin to your IO port. Make sure the power supply is between 3 - 5V. Once connected, the sensor is ready to work. It will start detecting obstacles in front of it within a range of 2 - 30 cm at an angle of up to 35 degrees. If an object is detected, the green indicator light on the board will light up. You can adjust the detection distance by rotating the potentiometer's dial clockwise to increase it. As for maintenance, keep the sensor clean and free from dust. Avoid exposing it to extreme temperatures or moisture. If you notice any issues with the sensor's performance, double - check the connections and the power supply.
