Say farewell to dangerous high - voltage wiring and build the Internet of Things with a safe and reliable power control solution. The IoT Power Relay from Digital Loggers is specially crafted to meet all your needs when working on projects with Raspberry Pi, Arduino, Adafruit Feather, or other microcontroller boards. This well - designed, powerful relay power module is perfect for controlling multiple outlets at once.
New as of August 2017, version 2 of this amazing outlet controller features an always - on outlet to power your project, which then controls the other 3 outlets. It also offers higher isolation voltage and mounting tabs.
Features:
- Control four outlets with a single input signal: 1 always on + 1 normally on + 2 normally off.

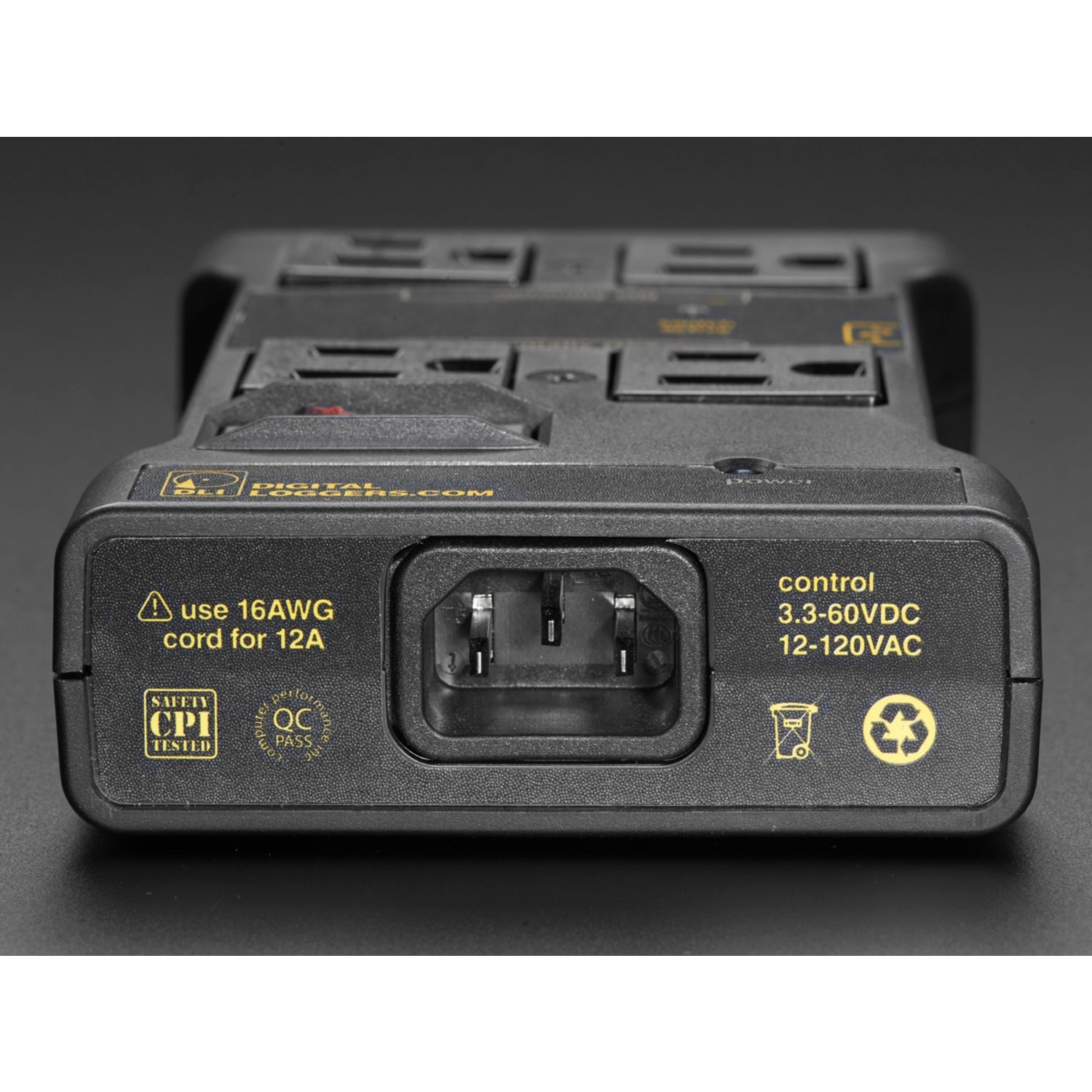

- Universal control voltage from 3 - 60VDC or 12 - 120VAC, and can be directly connected to 12V, 48VDC, or 120VAC circuits.
- Enhanced safety with optical isolation, relay, hysteresis, and de - bounce protection.
- A large MOV to clamp surges for clean 90 - 140 AVC power.
- Durable SPDT control relay rated at 30/40A, with over 400k operations at 12A or 2 million + at 5A.
- A 12A thermal safety circuit breaker switch to prevent overloads.
- Comes with a standard 24' C13 detachable cord.
- Mounting tabs for easy installation.
- Professionally built and tested.
Applications:
- IoT products, DIY gadgets, and OEM test equipment.
- Home and building automation and security.
- Green power and energy conservation.
- Switching devices using PoE.
- Kiosks, vending machines, and signage controls.
Using this power relay module is easy. First, connect it to the appropriate power source according to the universal control voltage options. The single input signal can then be used to switch the four outlets as per your need. You can power your project with the always - on outlet and control the other three.
When using, make sure to follow the voltage and current ratings. The 12A thermal safety circuit breaker is there to protect against overloads, but don't intentionally exceed the recommended limits.
For maintenance, keep the module clean and free from dust. Check the connections regularly to ensure they are secure. If you notice any signs of damage or abnormal operation, stop using it immediately and consult a professional. The module is professionally built and tested, so with proper use and care, it should serve you well for a long time.
