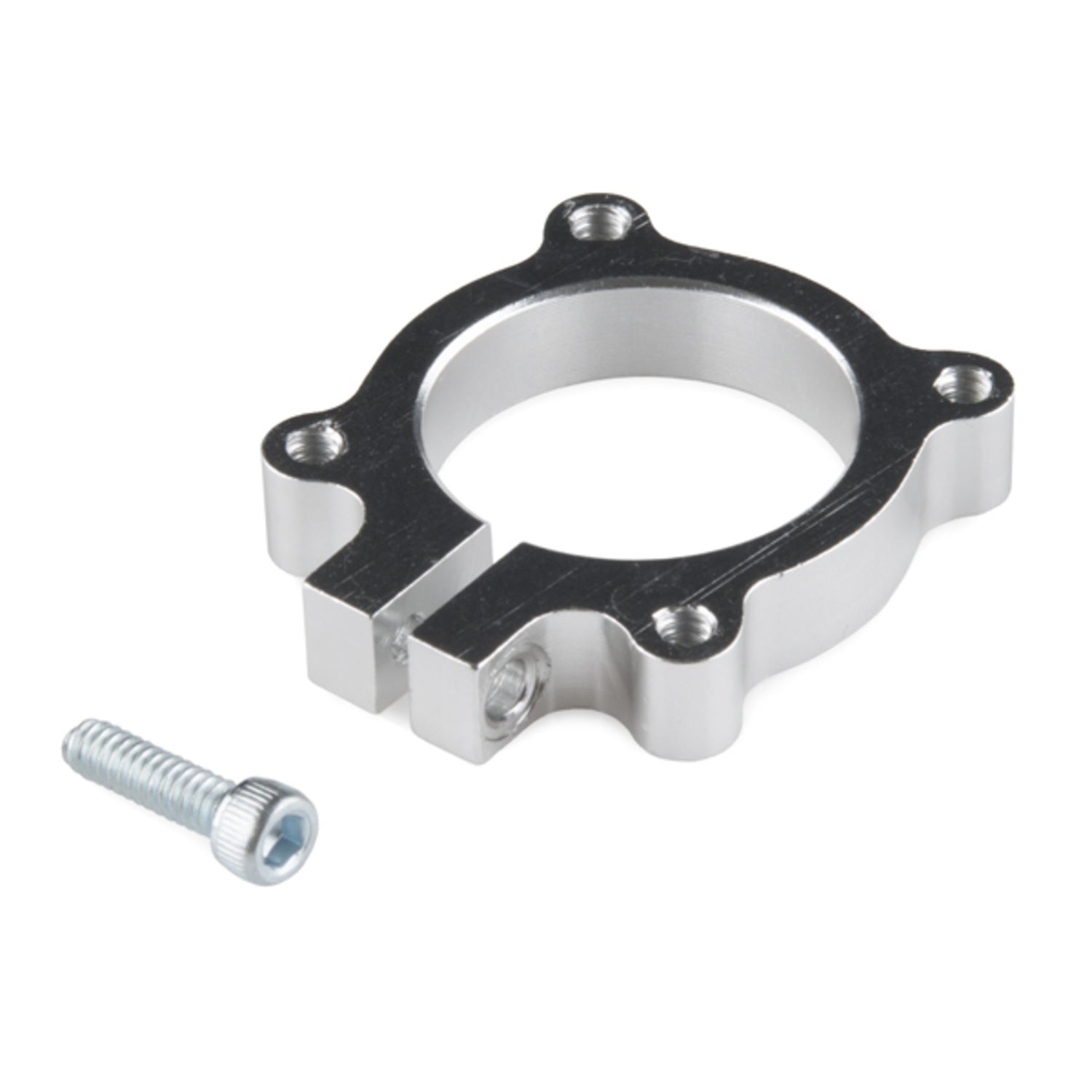

Clamping Hub - 1 Bore (Threaded)

These threaded aluminum clamping hubs are ideal for standard applications. They securely hold 1'-diameter shafting or tubing. With a 1' bore, 1.31' outer diameter, four 6 - 32 tapped holes, and a ¼ - 20 x ½' machine screw for tightening, they offer reliable performance. Actobotics is a robotics building system featuring extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to two standardized hole patterns, most Actobotics components can be easily connected. The wide range of components makes it possible to build complex electromechanical prototypes or finished projects. Dimensions: Bore - 1', OD - 1.31', Hub Pattern - 1.5'. Documents: SketchUp Part, Product Page (545352).

Using these clamping hubs is easy. First, make sure the shafting or tubing you're using has a 1' diameter. Slide the hub onto the shaft or tube. Then, use the ¼ - 20 x ½' machine screw to tighten it securely. When using in a robotics project with Actobotics components, connect them according to the standardized hole patterns. For maintenance, regularly check the tightness of the screw and the condition of the hub. If there's any sign of wear, replace the hub. Avoid over - tightening the screw as it may damage the hub or the shaft. Keep the hub clean to prevent debris from affecting its performance.
