10 Segment LED Bar Graph - Blue

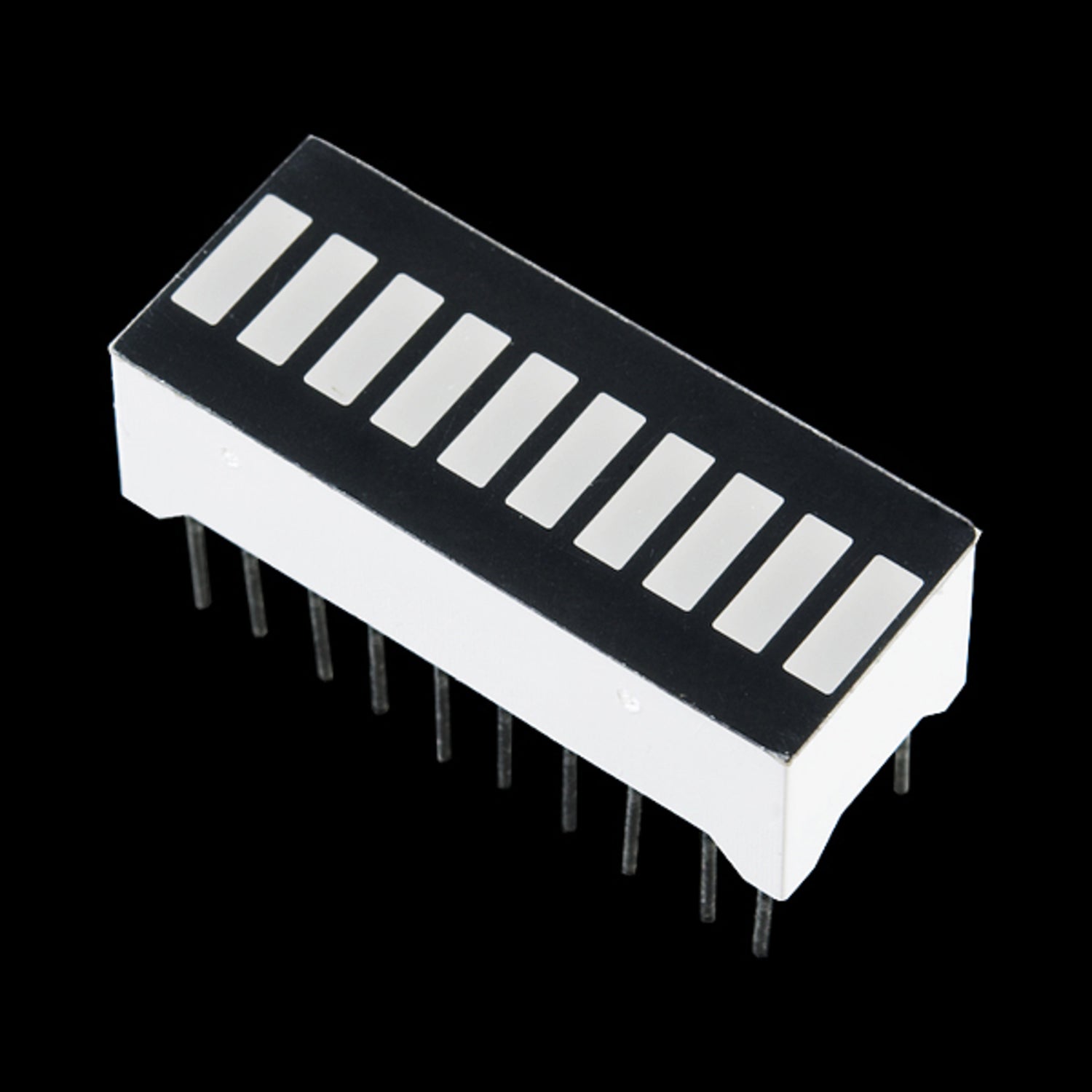

These 10-segment bar graph LEDs are incredibly versatile. They have a small footprint and are simple to hook up, making them perfect for both prototyping and finished products. In essence, they consist of 10 individual blue LEDs grouped together, each with its own anode and cathode connection. We also offer them in yellow, red, and green. Note that the pinout on these bar graphs might differ from what's in the datasheet. Rotating the device 180 degrees will fix this, making pin 11 the first pin in line. We've contacted our supplier to correct this issue in the future. You can find the datasheet and a YouTube video demo for more information.

Using this 10-segment blue LED bar graph is easy. First, connect each of the individual LEDs through their anode and cathode connections. Since it has a compact size and simple hookup, it's great for quick prototyping. You can use it in a variety of projects. We also have these LEDs in other colors like yellow, red, and green, so you can choose based on your needs. Just be aware that the pinout might not match the datasheet. If you find a difference, rotate the device 180 degrees and pin 11 will be the first in line. As for maintenance, keep it in a dry and clean place. Avoid exposing it to extreme temperatures or moisture. If you need more details, check out the datasheet and the YouTube video demo.
